Neptune Dynamix
Autonomous Unmanned Surface Vessels for Persistent Maritime Monitoring
Swarms of smart, autonomous, low-cost vessels with abundant power for ISR and multi-month missions
Get in Touch
Autonomous Unmanned Surface Vessels for Persistent Maritime Monitoring
Swarms of smart, autonomous, low-cost vessels with abundant power for ISR and multi-month missions
Get in Touch
300 warships cannot patrol 71% of earth's surface - they are becoming targets themselves
Ukraine shows: Drones are obliterating the old rules of power.
We are building what's next:
Wind Parks
Undersea Cables
Ocean Life
Shipping Lanes
Infrastructure-Independent Maritime Monitoring

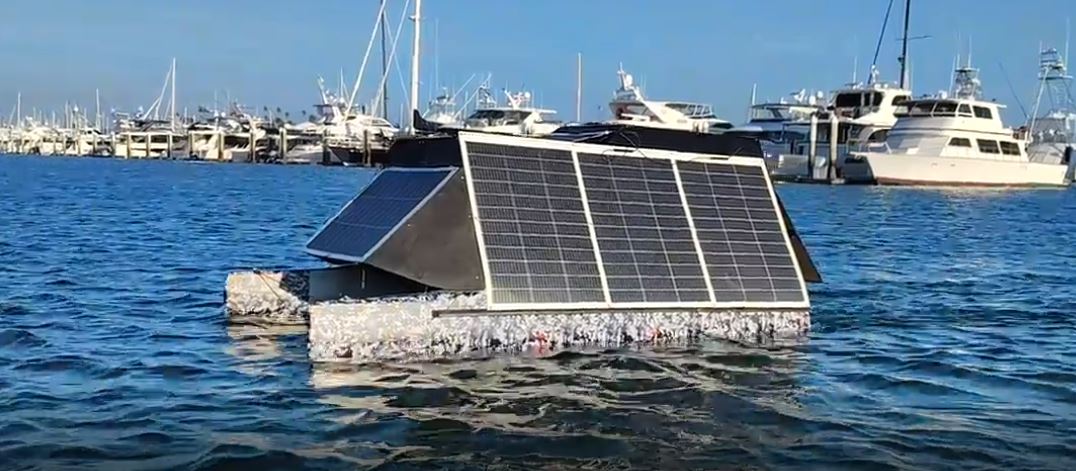

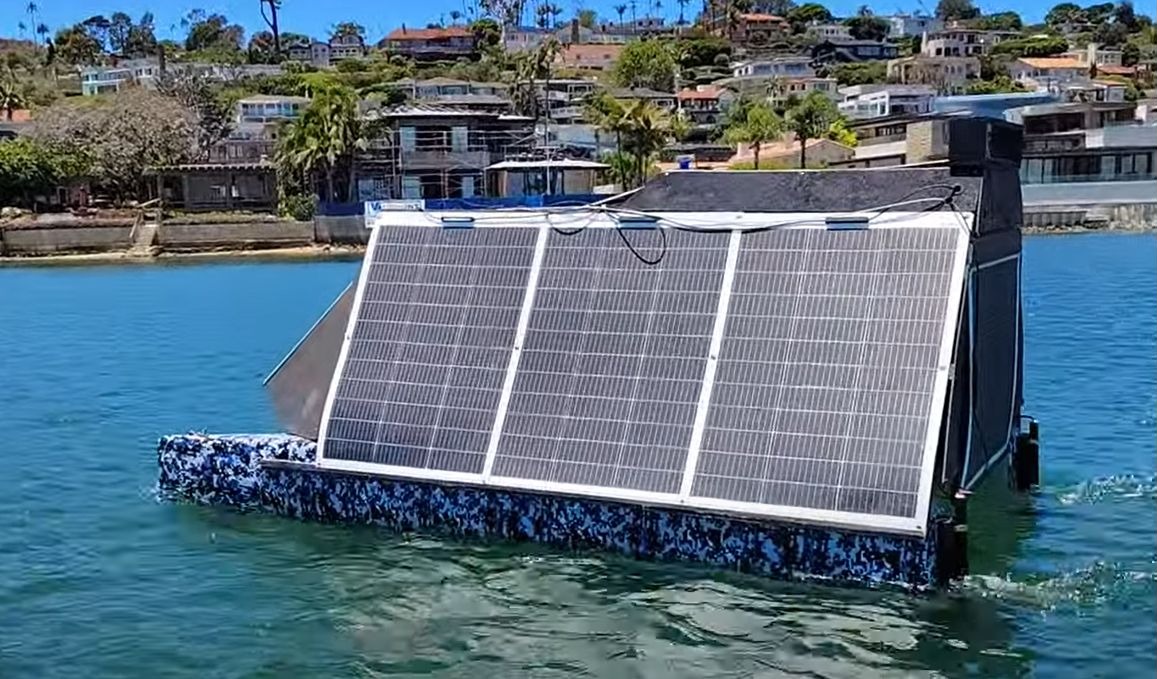

Prototype of the solar-powered catamaran
| Size: | 10 ft x 8 ft catamaran platform |
| Design: | Self-righting (patent pending), designed to weather higher sea states |
| Profile: | Height ~4 ft, low radar signature |
| Power: | Solar powered, 200W continuous (2000W burst) for payload |
| Duration: | Mission duration up to 3 months |
| Performance: | Cruise at 4 kn, top speed 15 kn for 60 min |
| Payload: | 50 lb, large capacity via removable waterproof cases, for example Pelican |
| Communication: | Starlink or equivalent, MESH radio support |
| Autonomy: | Fully autonomous operation with collision avoidance |
| Deployment: | Parts fit in Bicon, 2 person assembly and launch in < 60 min |
| Equipment | Continuous (W) | Burst (W) |
|---|---|---|
| Camera EO/IR | 41 | - |
| Radar | 24 | - |
| Passive and Active Sonar | - | 123 |
| ELINT | - | 700 |
| Ocean Monitoring | 1.4 | 50 |
| Weather Monitoring | 1 | - |
| Communication | 30 | - |
| On-Board Processing | 40 | - |
| Total | 137.4 | 873 |
Large solar harvesting area providing 200W (2000W burst) for payload
50 lb, large capacity with easy access via removable cases
Cruise at 4 kn, top speed 15 kn. Wave-piercing bows improve speed and stability
Extensive use of COTS components: hulls, solar panels, batteries, sensors
| Specification | Endurance 10 (base product) |
Endurance 16 | Endurance 20 |
|---|---|---|---|
| Length | 3 m (10 ft) | 4.9 m (16 ft) | 6.1 m (20 ft) |
| Solar Power | 2000 W | 4000 W | 8000 W |
| Payload Power | 200 W continuous 2000+ W for 1 hr |
300 W continuous 5 kW for 1 hr |
500 W continuous 10 kW for 1 hr |
| Payload Capacity | 22.5 kg (50 lbs), removable deck boxes | 100 kg (220 lbs), removable deck boxes | 225 kg (500 lbs), removable deck boxes |
| Performance | Cruise: 4 kn Top: 15 kn |
Cruise: 5 kn Top: >15 kn |
Cruise: 5.5 kn Top: >15 kn |
Interconnected vessels can establish large perimeters detecting and identifying surface and underwater activity (dragging anchors, submarines)
Capable power supply for extensive ISR instrumentation
Payload agnostic platform with MOSA architecture, providing 200 W continuous power for customer-defined missions
Ten times more power than competitors - 200W continuous (2000W burst) reserved for payload
Solar-powered with infinite mission duration
Superior payload capacity - 50 lbs with easy access via removable waterproof cases
Large capacity enables extensive ISR instrumentation and mission flexibility
Cruise at 4 kn, burst speed 15 kn - catamarans are faster than mono-hulls
Wave-piercing bows improve speed and stability in higher sea states
Edge-AI enabled decision-making with collision avoidance, COLREGS understanding, and mission profiles
Built-in redundancy for critical functions, fits in BICON, assembly in < 60 min
Ability to submerge and hide from threats
Autonomy is a key capability of the Neptune Dynamix vessel. Designed from the ground up to be capable of:
Experienced team; tested, disruptive technology
CEO
10+ patents, prior aerospace, semiconductor, and tech startup experience. PI of two Phase 1 SBIR awards. Mentor of High School FRC Robotics team.
COO
Founder of three USV companies: OceanAero, SubSeaSail, Harbor Wing
CIO
Experienced executive in software development, data management. Prior: Schrödinger, ActivX Biosciences, Edico Genome, San Diego Supercomputer Center
